SAG EC 2 (Small)

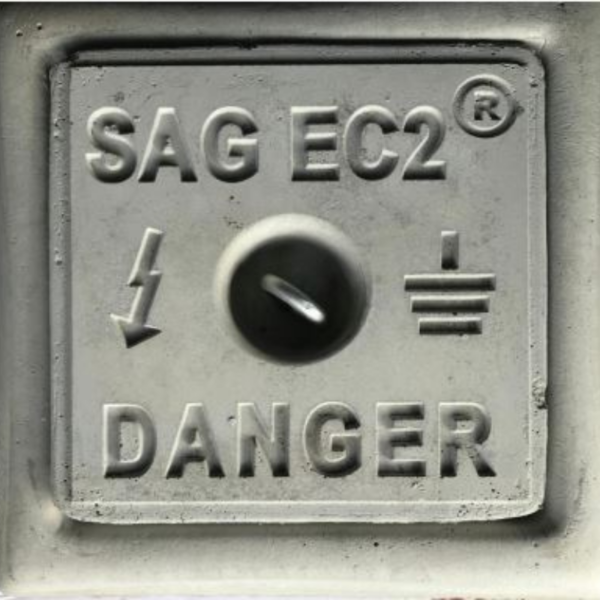

- Earth Chamber – SAG EC 2 (small size).
- Precast heavy duty concrete c/w cover and hot dipped galvanised hook.
- Conforms to BS1881-116:1983 (concrete testing) & designed to withstand compressive strength of 8.5MN/M².
- Made to protect the earthing and lighting protection system connection.
- Earth bars are not included (to order separately).

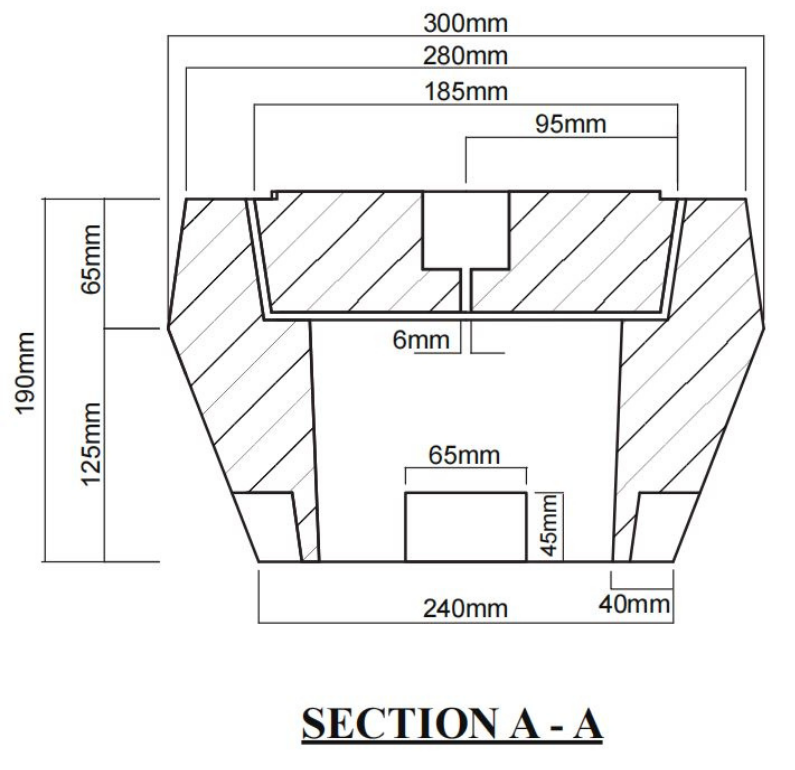

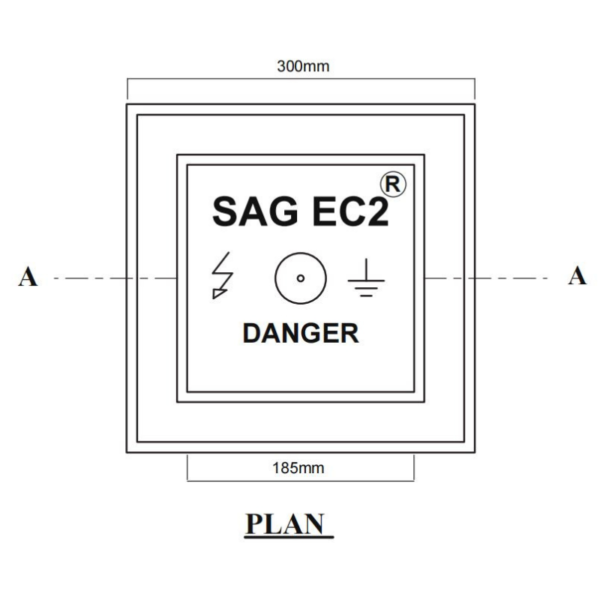

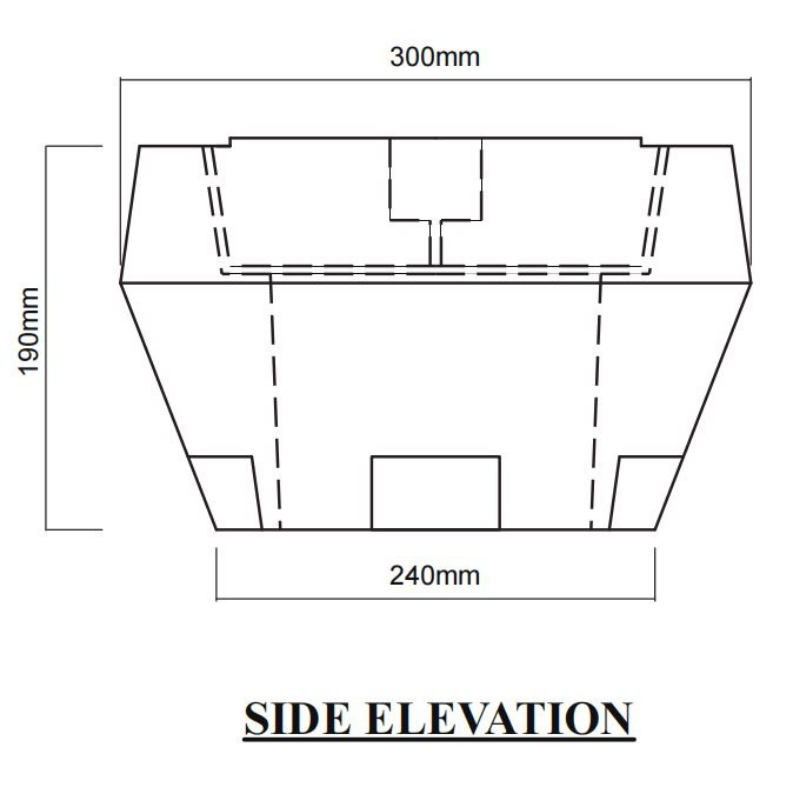

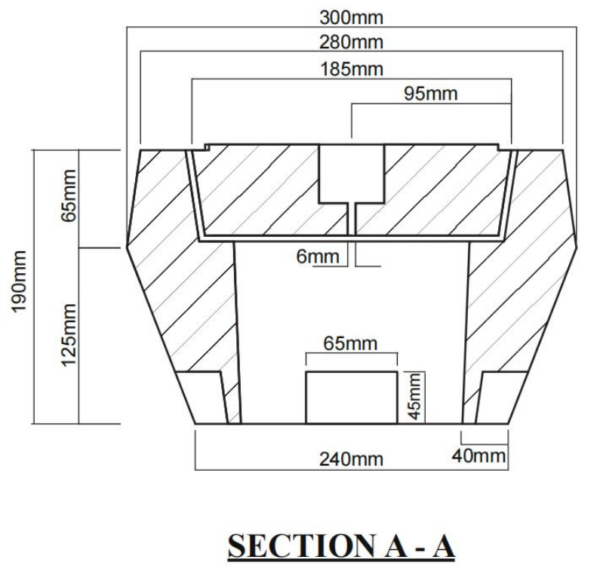

| Earth chamber width : | 300mm |
|---|---|
| Earth chamber height : | 190mm |
| Earth chamber weight : | 14.5kg |
| Cover width : | 185mm |
| Cover height : | 65mm |
| Cover weight : | 3.5kg |
| Hook height : | 100mm |
| Cable groove : | Width : 65mm Height : 45mm |
