SAG EC 3 (Large)
- Earth Chamber – SAG EC 3 (large size).
- Precast heavy duty concrete c/w cover and hot dipped galvanised hook.
- Conforms to BS1881-116:1983 (concrete testing) & designed to withstand compressive strength of 8.5MN/M².

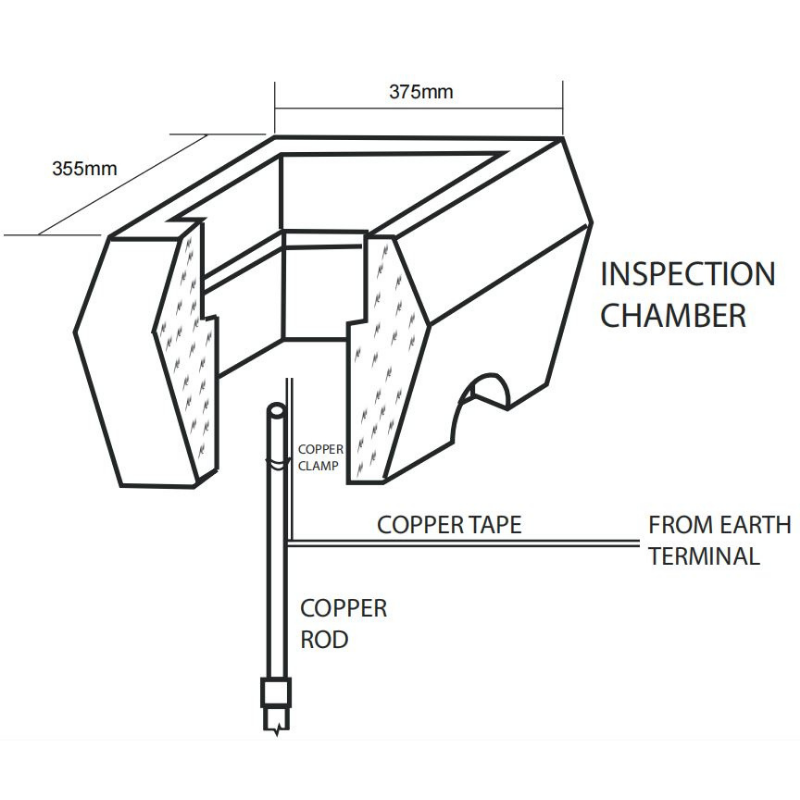

- Made to protect the earthing and lighting protection system connection.
- Earth bars are not included (to order separately).
| Earth chamber width : | 375mm |
|---|---|
| Earth chamber height : | 190mm |
| Earth chamber weight : | 20kg |
| Cover width : | 275mm |
| Cover height : | 75mm |
| Cover weight : | 9.5kg |
| Hook height : | 100mm |
| Cable groove : | Width : 70mm Height : 40mm |
